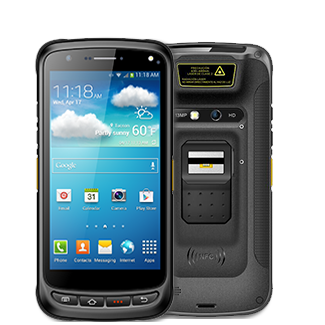

C71 OPTICAL FINGERPRINT

C71 OPTICAL FINGERPRINT

Accurate Fingerprint Reading, Reliable Identity Verification

Category:

Product Description

Physical Characteristics
Dimensions 164.2*78.8*17.5mm/6.46*3.10*0.69in
(the thickest: 31.5mm/1.24in)
Weight ＜314g/11.08oz
Display 5.2” IPS FHD 1920x1080P
Touch Panel Corning Gorilla Glass 3, multi-touch panel, gloves and wet hands supported
Power Main battery: Li-ion, rechargeable, 5000mAh
Standby: over 350 hours
Continuous use: over 12 hours (depending on user environment)
Charging time: 3-4 hours (with standard adaptor and USB cable)
Expansion Slot 1 slot for SIM card, 1 slot for SIM or TF card
Interfaces USB 2.0, Type-C
Audio Speaker, 2 microphones
Keypad 4 front keys, 1 power key, 2 scan keys, 1 multifunctional key
Sensors Gravity sensor, light sensor, proximity sensor, vibration motor
User Environment
Operating Temp. 4°F to 122°F / -20°C to 50°C
Storage Temp. -40°F to 158°F / -40°C to 70°C
Humidity 5%RH – 95%RH non condensing
Drop Specification Multiple 1.8m/5.9ft drops (at least 20 times) to the concrete across the operating temperature range
Tumble Specification 1000 x 0.5m/1.64ft falls at room temperature
Sealing IP65/IP67 dependent
ESD ±15KV air discharge, ±6KV conductive discharge
Developing Environment
Operating System Android 6.0 / Android 8.1
SDK Chainway Development Kit
(based on Morpho SDK)
Language Java
Tool Eclipse / Android Studio
Performance
CPU Cortex-A53 Quad-core 1.45GHz
RAM+ROM 2GB+16GB
Expansion Supports up to 128 GB Micro SD card
Communication
WLAN IEEE802.11 a/b/g/n, 2.4G/5G dual-band, internal antenna
WWAN (Europe) 2G: 850/900/1800/1900MHz
3G: 850/900/1900/2100MHz
4G: B1, B3, B5, B7, B8, B20, B40
WWAN (America) 2G: 850/900/1800/1900MHz
3G: 850/900/1700/1900MHz
4G: B2, B4, B7, B12, B17
WWAN (China) 2G: 900/1800MHz
3G: 900/1900/2000/2100MHz
4G: B1, B3, B5, B38, B39, B40, B41
WWAN (Others) Depending on the country’s ISP

Note:
C71 models being manufactured for Turkish Market, do not include Voice Call (Phone Call) function. WAN module included on those models only support DATA transfer.
Bluetooth Bluetooth 4.0, BLE
GNSS GPS/AGPS, GLONASS, BeiDou; internal antenna
Fingerprint
Sensor Optical Morpho CBM-E3
Sensing Area (mm) 14×22
Resolution (dpi) 500 dpi, 256 greylevel
Certifications FIPS PIV IQS / ISO 19794-4, MINEX & FIPS 201 complaint, STQC
Format Extraction ISO 19794-2/4, WSQ, ANSI 378, etc.
Security FIPS 140-2 level 2, multiple security methods available, including image and templates encryption, template signature, secure tunneling, etc.
Barcode Scanning
1D Linear Scanner（Quad-core） Zebra SE965 / Honeywell N4313
1D Symbologies UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc.
2D Imager Scanner(Quad-core) Zebra: SE4710 / SE4750 / SE4750MR; Honeywell: N6603
2D Imager Scanner(Octa-core) Zebra: SE2707
2D Symbologies PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX), etc.
Note *This function is optional
Camera
Camera 13MP autofocus rear camera with flash, optional 5MP front camera
NFC
Frequency 13.56MHz
Protocol ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc
Chips M1 card (S50, S70), CPU card, NFC tags, etc
Range 2-4cm
Iris Recognition
Rate <150ms
Range 20-40cm
FAR 1/10000000
Note Protocol：ISO/IEC 19794-6，GB/T 20979-2007
Note2 *This function is optional
*Iris is alternative to front camera

Additional Information

Model

C71 OPTICAL FINGERPRINT
