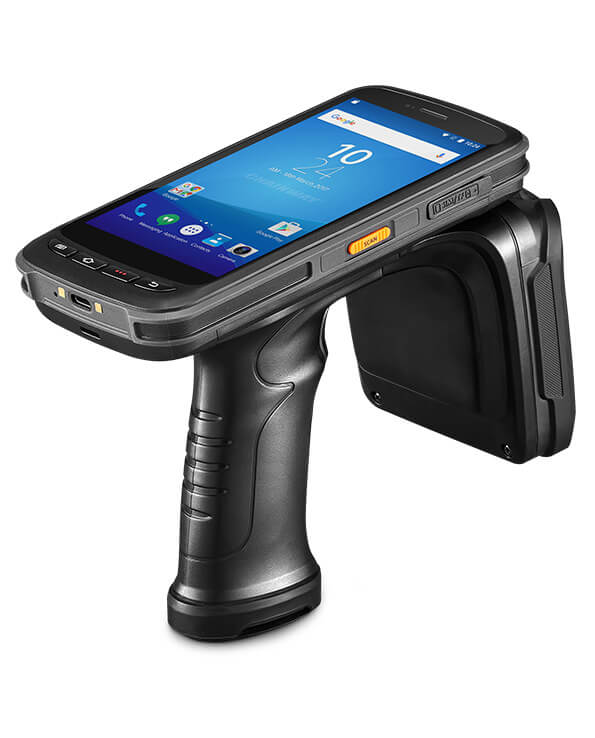

Chainway C72 is an Android rugged mobile computer. It features 8000mAh powerful battery, barcode scanning, as well as high-level UHF RFID capability. It can be equipped with Impinj R2000 linearly (1.8dBi) or circularly (4.0dBi) polarized antenna. That it can read tags in bulk from long distances enables enterprises to deploy this single device in many areas with enhanced efficiency, especially in asset management, retail, warehousing, fleet management, etc.
Accessories:
AC adapter, USB cable, Lanyard, Pistol Grip
Multiple 1.2m/3.9ft drops to concrete across the operating temperature range
Tumble Specification
1000 x 0.5m/1.64ft falls at room temperature
Sealing
IP64
ESD
±15KV air discharge, ±8KV conductive discharge
Developing Environment
Operating System
Android 5.1
SDK
Chainway Software Development Kit
Language
Java
Tool
Eclipse / Android Studio
Performance
CPU（1）
Qualcomm 1.3 GHz quad-core
RAM+ROM（1）
2GB+16GB
CPU（2）
Qualcomm 1 GHz quad-core
RAM+ROM（2）
1GB+8GB
Expansion
Supports up to 128 GB Micro SD card
Fingerprint
Functions
Fingerprint enrollment, match, storage etc.
Sensor
TCS1 / TCS2SS (Capacitive)
Image Size (pixel)
TCS1: 12.8×18; TCS2SS: 10.4×14.4
Sensing Area (mm)
TCS1: 256×360; TCS2SS: 208×288
Resolution (dpi)
508
Standard
TCS1: FIPS, STQC; TCS2SS: ISO
Note
*This function is optional
PSAM
Protocol
ISO7816 Protocol
Slots
1 PSAM slot
Note
*This function is optional
InfraRed
Wavelength
940nm
Frequency
38kHz
Range
> 4m
Protocol
DLT_645-2007
Note
*This function is optional
Barcode Scanning
1D Linear Scanner
Honeywell N4313 / Zebra SE965
1D Symbologies
UPC/EAN, Code128, Code39, Code93, Code11,Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc.
2D Imager Scanner
Zebra SE4500
2D Symbologies
PDF417, MicroPDF417, Composite, RSS, TLC-39,Datamatrix, QR code, Micro QR code, Aztec,MaxiCode; Postal Codes: US PostNet, US Planet,UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX), etc.
C72 Scanner Basic Version
Chainway C72 is an Android rugged mobile computer. It features 8000mAh powerful battery, barcode scanning, as well as high-level UHF RFID capability. It can be equipped with Impinj R2000 linearly (1.8dBi) or circularly (4.0dBi) polarized antenna. That it can read tags in bulk from long distances enables enterprises to deploy this single device in many areas with enhanced efficiency, especially in asset management, retail, warehousing, fleet management, etc.
Accessories:
AC adapter, USB cable, Lanyard, Pistol Grip
Product Description
Pistol battery: Li-ion, 5200mAh (optional)
Additional Information
164.2 x 80.0 x 24.3mm
Android 6.0
Cortex-A53 1.45GHz Quadcore
RAM-2GB, ROM-16GB
5.2″IPS LTPS 1920×1200 screen+8,000 mAh battery
