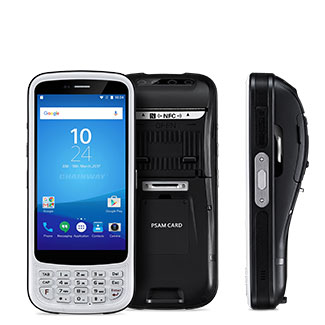

C75 Mobile Computer with Printer

C75 Mobile Computer with Printer

Mobile Efficient Receipt Printing

Category:

Product Description

Physical Characteristics
Dimensions 186.89*83.99*35.04-49.49mm
Weight 507g/17.88oz
Display 5.2” IPS FHD 1920x1080P
Touch Panel Corning Gorilla Glass, multi-touch panel, gloves and wet hands supported
Power Main battery: Li-ion, rechargeable, 8000mAh
Expansion Slot 2 PSAM slots at most (ISO7816 protocol), 1 slot for SIM card, 1 slot for SIM or TF card
Interfaces USB 2.0 Type-C, OTG
Audio Speaker, 2 microphones
Keypad 1 power key, 2 scan keys, 1 multifunctional key, numeric keyboard
Sensors Gravity sensor, light sensor, proximity sensor
User Environment
Operating Temp. -4°F to 122°F / -20°C to 50°C
Storage Temp. -40°F to 158°F / -40°C to 70°C
Humidity 5%RH – 95%RH non condensing
Drop Specification Multiple 1m/3.28ft drops (at least 20 times) to the concrete across the operating temperature range
ESD ±15KV air discharge, ±6KV conductive discharge
Developing Environment
Operating System Android 6.0; Soti MobiControl, SafeUEM supported
SDK Chainway Software Development Kit
Language Java
Tool Eclipse / Android Studio
Performance
CPU Cortex-A53 Quad-core 1.45GHz
RAM+ROM 2GB+16GB
Expansion Supports up to 128 GB Micro SD card
Communication(Quad-core)
WLAN IEEE802.11 a/b/g/n, 2.4G/5G dual-band, internal antenna
WWAN (China) 2G: 900/1800MHz
3G: 900/1900/2000/2100MHz
4G: B1, B3, B5, B38, B39, B40, B41
WWAN (Europe) 2G: 850/900/1800/1900MHz
3G: 850/900/1900/2100MHz
4G: B1, B3, B5, B7, B8, B20, B40
WWAN (America) 2G: 850/900/1800/1900MHz
3G: 850/900/1700/1900MHz
4G: B2, B4, B7, B12, B17
WWAN (Others) Depending on the country’s ISP
Bluetooth Bluetooth 4.0, BLE
GNSS GPS/AGPS, GLONASS, BeiDou; internal antenna
Note C75 models being manufactured for Turkish Market, do not include Voice Call (Phone Call) function. WAN module included on those models only support DATA transfer.
Barcode Scanning
2D Imager Scanner Zebra SE4710
2D Symbologies PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX), etc.
Note *This function is optional
Camera
Camera 13MP Autofocus with flash
Thermal Printer
Rate 85mm/s
Image Size (pixel) 384 dots
Paper Width 58mm
Paper Diameter 3cm
Paper Length 5.45m
NFC
Frequency 13.56MHz
Protocol ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc.
Chips M1 card (S50, S70), CPU card, NFC tags, etc.
Range 2-4cm
Iris Recognition
Rate <150ms
Range 20-40cm
FAR 1/10000000
Note Protocol：ISO/IEC 19794-6，GB/T 20979-2007
Note2 *This function is optional

Additional Information

Model

C75 Mobile Computer with Printer
