250.8mm x 152mm x 15mm/ 9.87 x 5.98 x 0.59in(for standard version)
Weight
700g/24.7oz(for standard version)
Display
8” IPS LTPS 1920×1200
Touch Panel
Corning Gorilla Glass 3, multi-touch panel, gloves and w et hands supported
Power
Main battery: Li-ion, rechargeable, 8000mAh Standby: over 500 hours
Continuous use: over 10 hours (depending on user environment)
Charging time: 5-7 hours (with standard AC adaptor and USB cable)
Expansion Slot
1 slot for SIM card, 1 slot for TF card, Optional PSAM card slot
Interfaces
USB 3.0 Type-C, OTG
Audio
Speaker, microphone
Keypad
1 front key, 1 volume key, 1 power key
Sensors
Gravity sensor
User Environment
Operating Temp.
-4oF to 122oF / -20oC to 50oC
Storage Temp.
-40oF to 158oF / -40oC to 70oC
Humidity
5%RH – 95%RH non condensing
Drop Specification
Multiple 1.5m/4.9ft drops to concrete across the operating temperature range
Tumble Specification
500 x 0.5m/1.64ft falls at room temperature
Sealing
IP 65. Complete protection against contact (dust tight). Water projected by a nozzle (6.3 mm) against enclosure from any direction shall have no harmful eddects.
FIPS PIV IQS / ISO 19794-4, MINEX & FIPS 201 complaint, STQC
Format Extraction
ISO 19794-2/4
Security
FIPS 140-2 level 2, multiple security methods available, including image and templates encryption, template signature, secure tunneling, etc.
Fake Finger Detection
Yes
PSAM
Protocol
ISO7816
Slots
2 PSAM card slot
Note
*This function is optional
InfraRed
Wavelength
940nm
Frequency
38kHz
Range
>4m
Protocol
DLT_645-2007, DLT_645-1997
Note
*This function is optional
Barcode Scanning
Scan engine
Zebra SE4710 (standard), Zebra SE4850 (optional)
1D Symbologies
UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc.
2D Symbologies
PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch, Postal (KIX), etc.

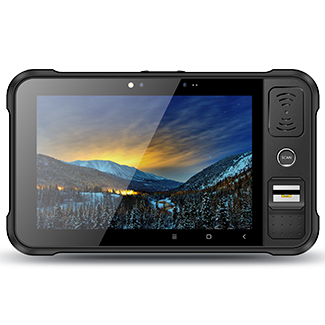

P80 Optical Fingerprint Tablet
8” Screen & 8000mAh Battery, Abundant Functions Available
Product Description
Continuous use: over 10 hours (depending on user environment)
Charging time: 5-7 hours (with standard AC adaptor and USB cable)
3G: CDMA EVDO:BC0
TD-SCADMA: B34/B39
WCDMA: B1/B2/B5/B8
4G: TDD-LTE: B38/B39/B40/B41
FDD-LTE: B1/B2/B3/B4/B5/B7/B8/B20/B26/B28
* Front Iris
Additional Information
P80 Optical Fingerprint Tablet
