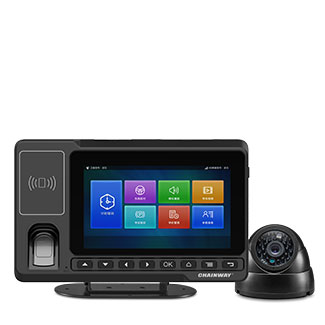

V600 VEHICLE COMPUTER

V600 VEHICLE COMPUTER

Effectively Ensuring Traffic Safety

Category:

Product Description

Physical Characteristics
Dimensions 188mm x 115mm x 29mm / 7.40 x 4.53 x 1.14in
Display 5.5″ 720P TFT-LCD capacitive touch panel
16.7M colors, adjustable backlight brightness
Expansion Slot 1 SIM, 1 TF, 1 SD, 1 HF slot
Interfaces Micro USB, USB type A, OTG
Audio Speaker, microphone; supporting voice calls
Input Mode Touch input
Keypad 8 function keys
Sensors Gravity sensor, gyroscope
User Environment
Input Voltage 9V~60V
Operating Temp. -4°F to 122°F / -20°C to 50°C
Storage Temp. -40°F to 158°F / -40°C to 70°C
Humidity 5%RH – 95%RH non condensing
ESD ±8KV air discharge, ±4KV conductive discharge
Developing Environment
Operating System Android 5.1
SDK Chainway Software Development Kit
Language Java
Tool Eclipse/Android Studio
Performance
Option 1 CPU: Qualcomm 1.3 GHz quad-core
RAM+ROM: 2GB+16GB
Option 2 CPU: Qualcomm 1.3 GHz quad-core
RAM+ROM: 1GB+8GB
Expansion Supports a total of 64GB by SD and TF cards
Communication
WLAN IEEE802.11 b/g/n
WWAN (Europe) 2G: GPRS(900/1800MHz)
3G: WCDMA B1 B8
4G: FDD-LTE: B1 B3 B7 B8 B20
WWAN (America) 2G: GPRS(850/1900MHz)
3G: WCDMA B2 B5
4G: FDD-LTE: B2 B4 B5 B7 B17
WWAN (China) 2G: GPRS(850/900/1800/1800MHz)
3G: WCDMA : B1;CDMA EVDD: EVDD Rev.A800MHz;TD-SCDMA: B34, B39
4G: TDD-LTE: B38/B39/B40/B41,FDD-LTE: B1/B3
Bluetooth Bluetooth 4.0
GNSS GPS, A-GPS, BeiDou (optional)
Fingerprint
Memory 1,000 PCS fingerprints
Sensor TCS2SS
Image Size (pixel) 256×288
Resolution (dpi) 508DPI
Note *This function is optional
Barcode Scanning
Note *Barcode scanning is alternative to fingerprint recognition
Note2 *This function is optional
Camera
Front Camera GC 5MP autofocus camera
External Camera (optional) Two-channel (with infrared lamp), taking photos and videos
Resolution: 320 x 240, 640 x 480, 1280 x 720
Fps: YUY2: 720p/15fps, VGA/30fps, CIF/30fps
MJPEG: 720p/30fps, VGA/60fps, CIF/60fps
HF RFID
HF NXP
Frequency 13.56MHz
Protocol ISO14443A/B,15693
Chips 1) MF1 card (S50/S70), MF0 (Ultra light),MF3 (Desfire D40/D41/D81), CPU_A card
2) CPU_B card
3) Others for customization
OBD
Protocol OBDII, ISO9141-2, ISO14230(KWP)
ISO15765(CANBUS)
*This function is optional

Additional Information

Model

V600 VEHICLE COMPUTER
